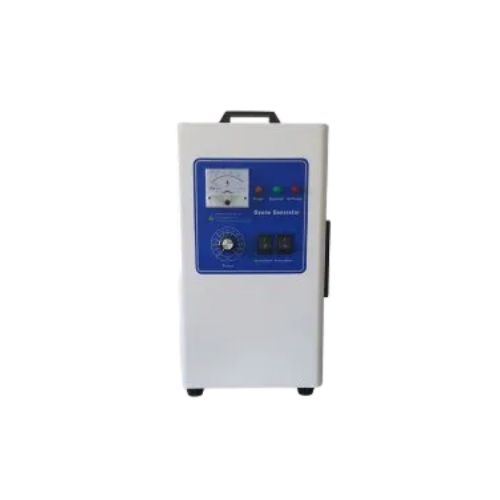

"5 Gram Ozone Generator in White Steel Casing by The Water Solar Company for water treatment system."

5G Ozone Generator Mild Steel Casing

SKU: OG5GMS
R4,300.00Price

5 Gram Ozone Generator (Casrbon Steel Casing)
Ozone is a powerful oxidant and bactericide. Lately, it is widely used in air and water disinfection & sterilization in different fields such as fruit and vegetable fresh-keeping, drinking water purification, room air purifying, etc.



Features
•    Efficiently destroy a variety of bacteria and viruses, but without secondary pollution.
•    Effectively remove residual pesticides from vegetables and fruits.
•    Eliminate mould, smoke, and remove bad odour.
•    Improve the oxygen level for air and water.
•    Purifies the air and expedite human metabolism. Removes skin pore dirt, bacteria, and prevent freckles, acne, and pigmentation.
Operating Environment
•    Ambient Temperature: -10˚C ~37˚C
•    Ambient Humidity: ≤55%



•    There should be no flammable or explosive gas and conductive power dust in the room. It is not permissible to install the unit in a place where alkaline air is easy to leak or with a risk of an explosion that could occur.
•    The ground for equipment installation must be horizontal, and the equipment should be placed on the ground or steady supports
•    There must be a draft fan or air conditioner to keep the air dry and the operating environment in good ventilation.
Safety Notes
•    This series of products use 220V/50Hz AC power source. If the voltage and frequency fluctuation range is heavy, this may cause damage and equipment failure.
•    The power cord plugs should keep in contact with the socket firmly. If not, this may cause abnormal electricity usage, and even cause electrocution.
•    Users should regularly check the power cord, and avoid standing or putting heavy objects on the power cordd.
•    Please don’t use the unit in an environment that contains explosive products.
•    In operation, the machine uses high voltage. Don’t open the back door or touch the inside of the unit when its plugged in.
•    Avoid inside contact with water as this will damage the unit.


5 Gram Ozone Generator (Steel Casing)

Technical Specifications
•    Power: 80W
•    Injection Range: 30-70m3
•    Ozone Concentration: 15-25g/m3
•    Unit Dimensions: 23cm x 18cm x 46.5cm
•    Package Dimensions: 32cm x 26cm x 51cm
•    Net Weight: 5.1kg
•    Gross Weight: 5.9kg
•    Cooling Way: Air Cooling
•    Voltage: 220V/50Hz
•    Gas Feeding: Air Source
•    Air Pump Model: Air Pump 16L
•    Outer Flow: 16L
•    Chassis Material: Carbon Steel Spray Painted
•    Cooling Fans: 20W/12cm x 12cm x 3.8cm
